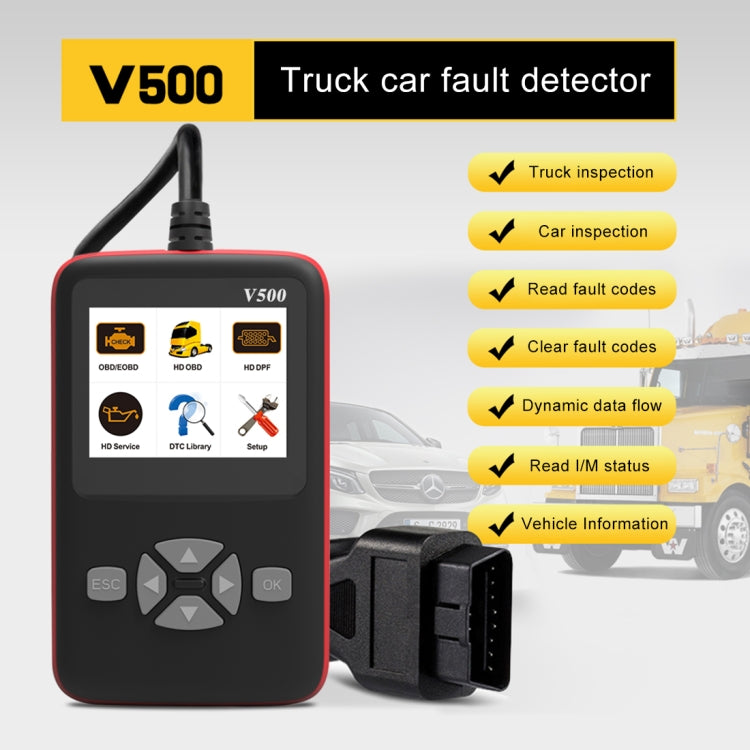

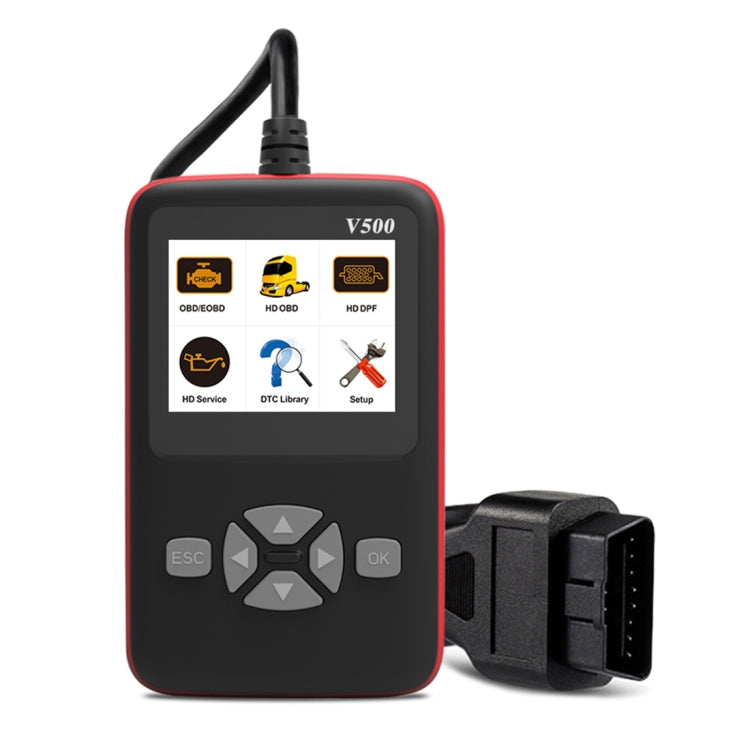

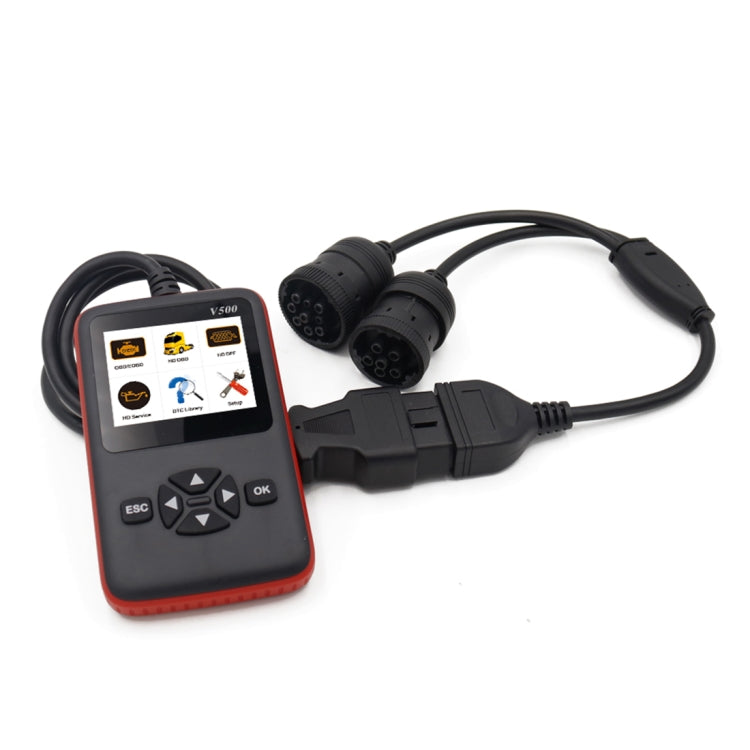

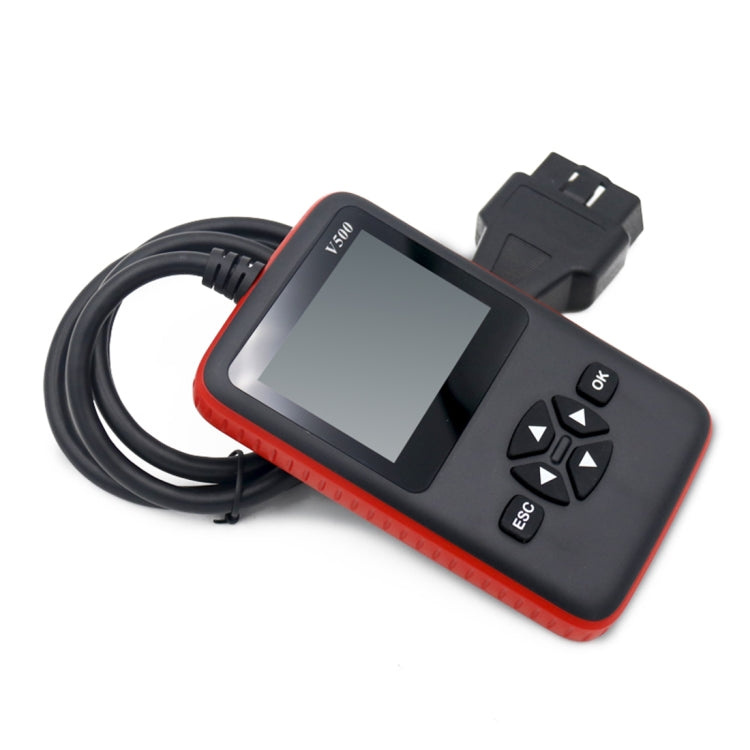

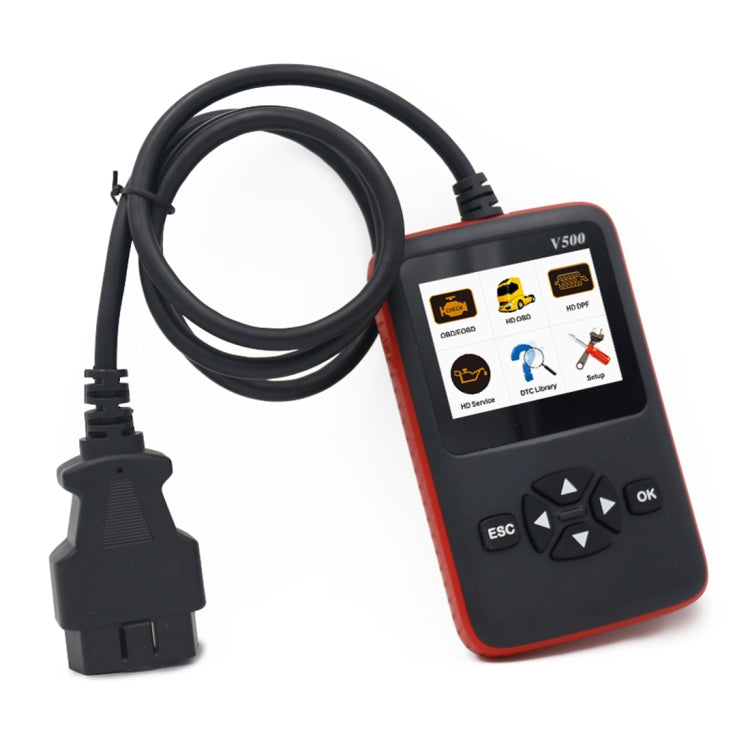

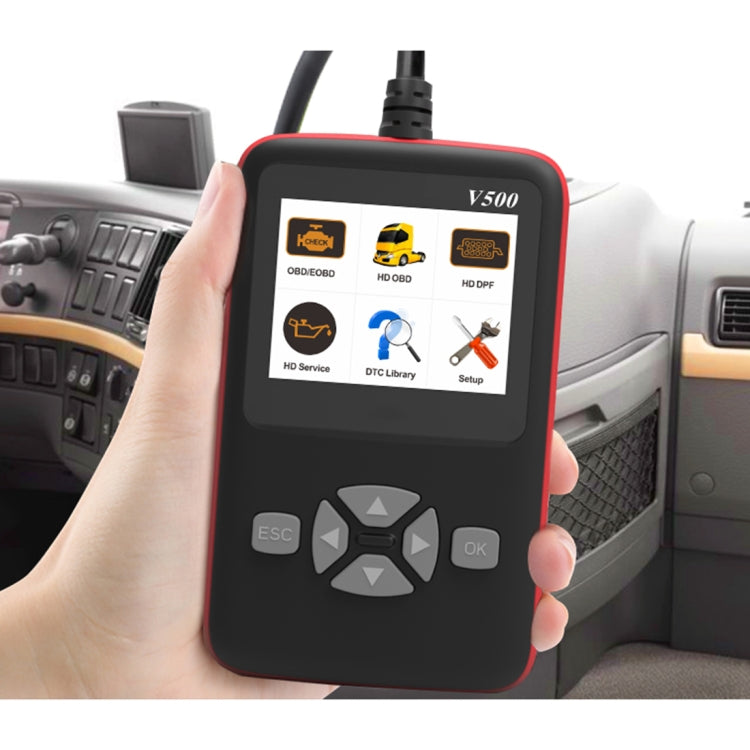

V500 Trunk HD Reading Card Professional OBDII Diagnostic Code Scanner Tool, V500

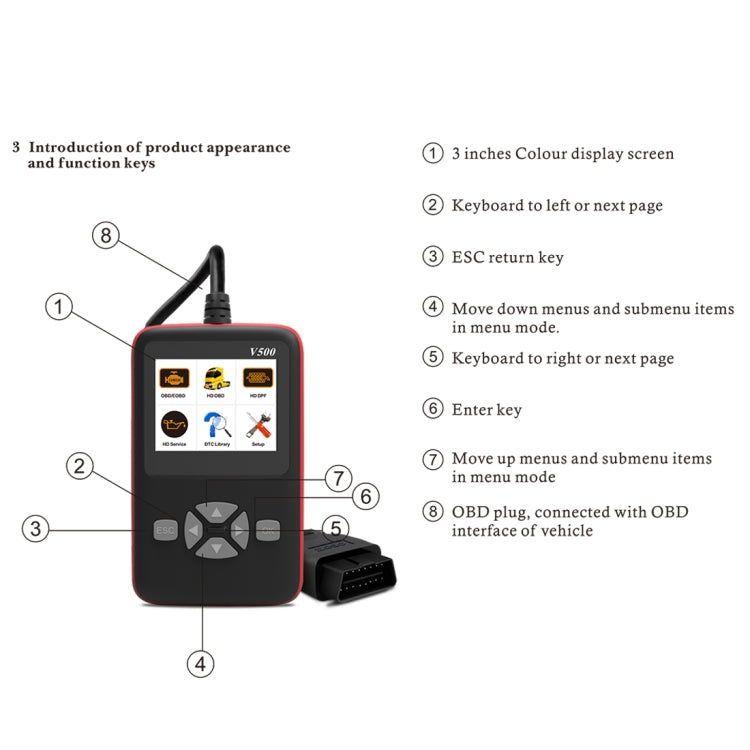

1. Easy to operate.
2. Easy to install, play and plug.
3. Supported Protocol:
SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO 9141-2(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP(fast init,10.4 Kbaud)
ISO 15765-4 CAN(11bit ID,500 Kbaud)
ISO 15765-4 CAN(29bit ID,500 Kbaud)
ISO 15765-4 CAN(11bit ID,2500 Kbaud)
ISO 15765-4 CAN(29bit ID,250 Kbaud)
SAE J 1939
ISO 1708
4. Working voltage: DC 9 ~ 16V
5. Working current: 89mA
6. Operating environment: -20 ~ 65 degrees Celsius
7. Storage temperature: -30 ~ 80 degrees Celsius

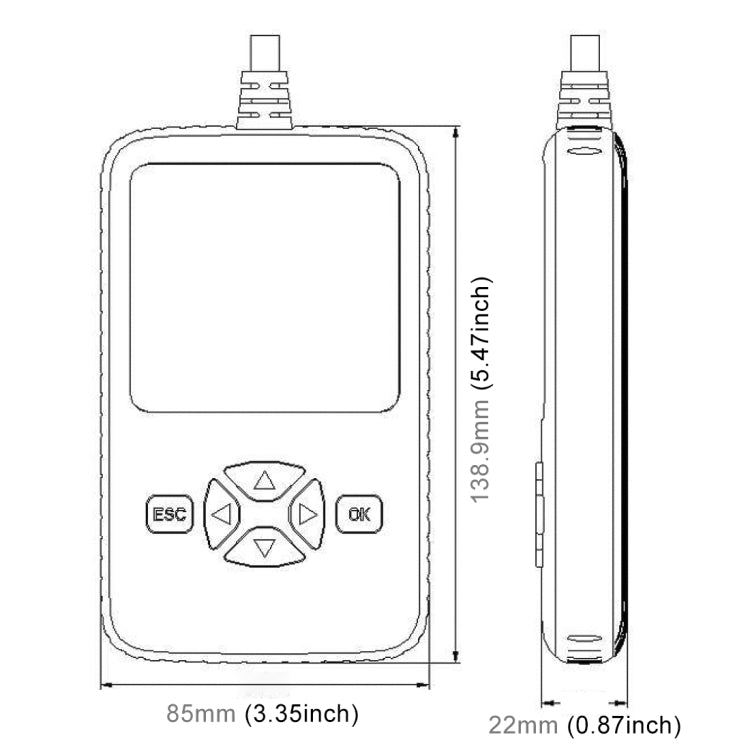

8. Dimensions: 138.9 x 85 x 22mm
