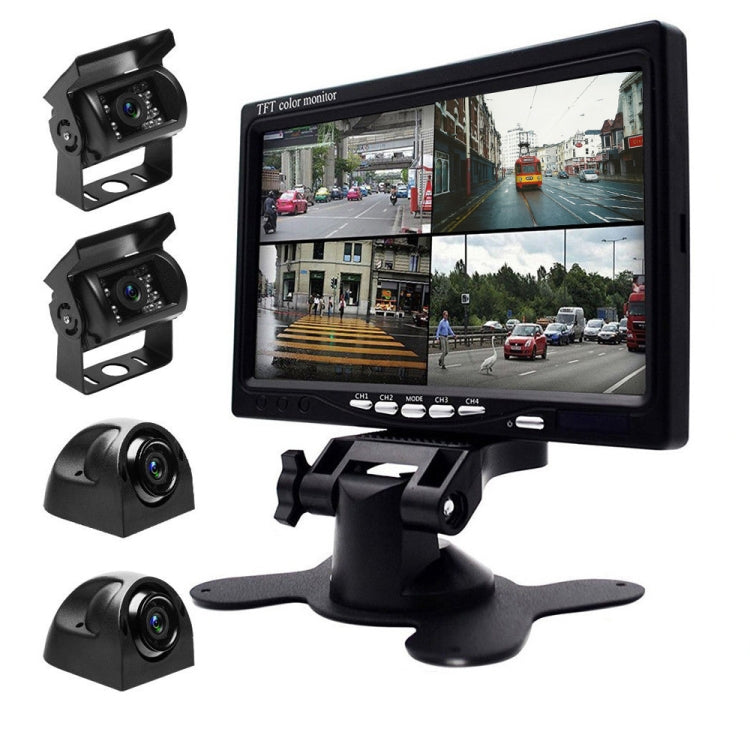

K0164 7 inch HD Car 18 IR Night Vision Rear View Backup Four Cameras Rearview Monitor, K0164

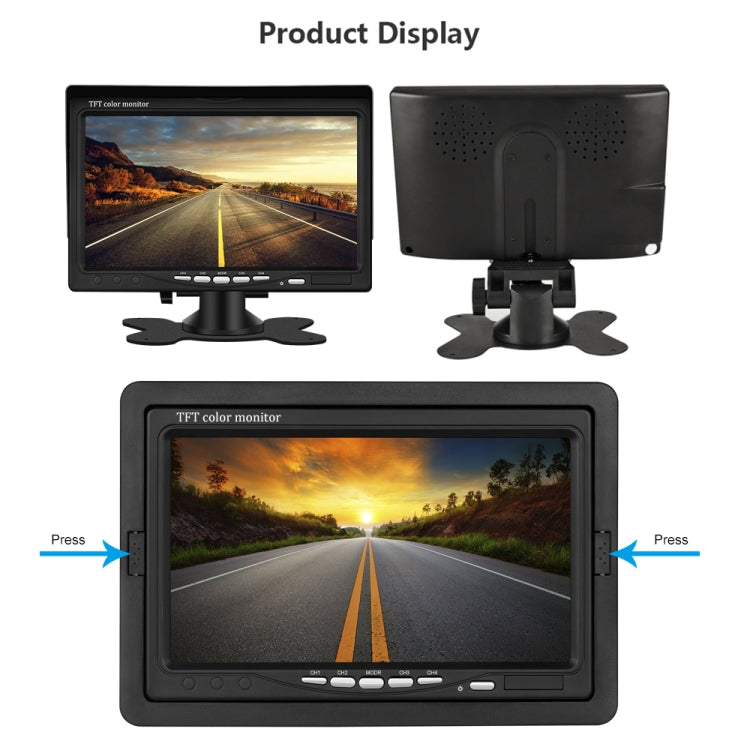

7 inch Color TFT LCD Monitor:
1. Image can be switched left and right, up and down.
2. Panoramic driving security system. You can see 4 direction scenery on a display outside the car.

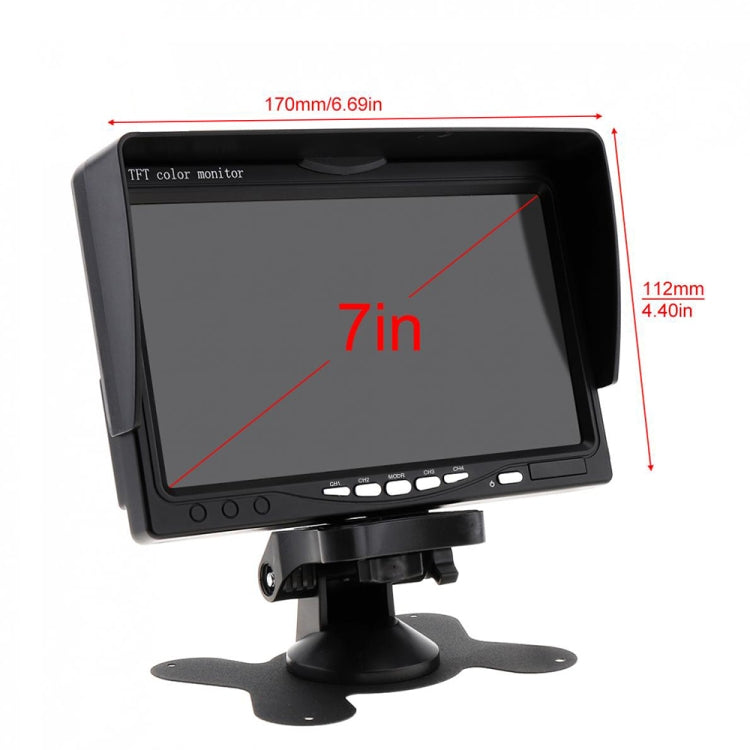

3. 4 Channels input: V1/V2/V3/V4 - Screen Size: 7 inch * Housing Material: ABS
4. Resolution: 800 x 480 RGB
5. Contrast: 500 : 1
6. Display Mode: 16 : 9
7. Power Supply: DC 9-36V
8. Video Frequency: PAL / NTSC
9. Operation Temperature: -20 ~ 60 degrees
10. Drive scheme: MST703
11. Segmentation scheme: DM5858
12. Decoding chip:7440
13. Minimum illumination: 0.1LUX
14. Language: Japanese/Russian/German/French/Spanish/Portuguese/Italian/Chinese/English

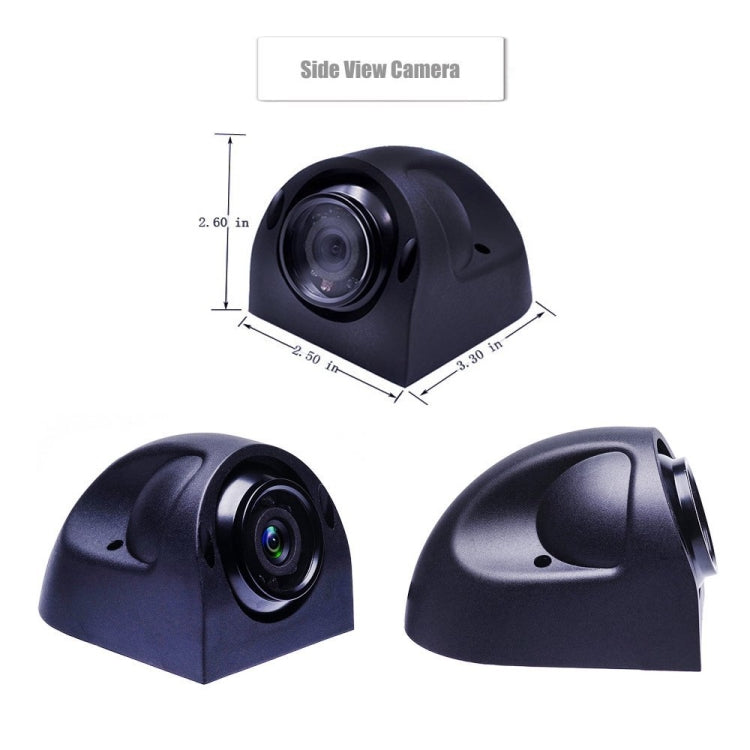

Car Side View Camera:
1. Normal viewing and NO GUIDE LINE
2. Chip: Color 1/4 Sharp CMOS
3. Format: PAL / NTSC
4. Resolution: PAL: 500 (H) x582 (V) / NTSC: 510 (H) x492 (V)
5. Horizontal: 420TV Lines
6. Night vision distance: 10M
7. SNR: more than 48dB (AGC OFF)
8. Operating temperature: -10 to +50 degrees RH95 % Max
9. Storage temperature: -25 to +60 degrees RH95 % Max
10. White Balance: Auto
11. Power supply: DC 9V-36V

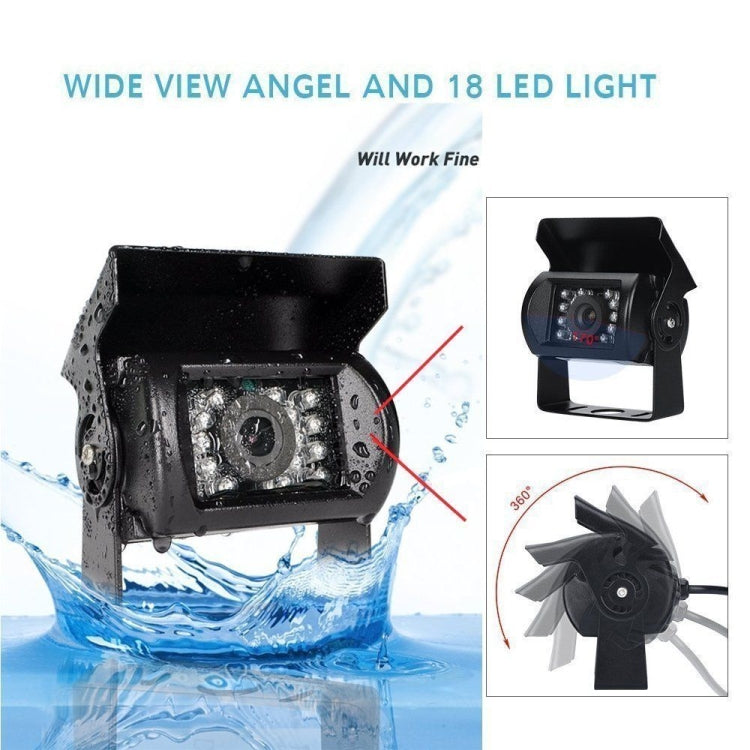

Front /Rear View Camera:
1. Front Camera for normal viewing and NO GUIDE LINE
2. Rear Camera for mirror viewing and with Guide Line
3. Auto IR Cut Night Vision: Built-in 18 IR LED lights, good performance in day and night.
4. Automatically switches to IR when light level is low. Night visible range to 30 ft.
5. IP68 Waterproof: High strength weatherproof lens
6. Image Sensor: CMOS 7030 HD Sensor
7. TV System: NTSC/PAL
8. Resolution: 420 TV lines
9. Video Output: RCA connector,1.0vp-p 75OHM
10. S/N Ratio: Better than 48db
11. Power Supply: DC 9V -DC 24V
12. Work Temperature: - 20 ~ +60 degrees
13. White Balance: Auto Tracing
Package Contains:
1 x Quad Split Monitor
2 x Side View Camera
2 x Rear View Camera
4 x Video cable
5 x Power Cable
1 x Suction Cup Mount
1 x Dashboard Stand
1 x IR Remote Control

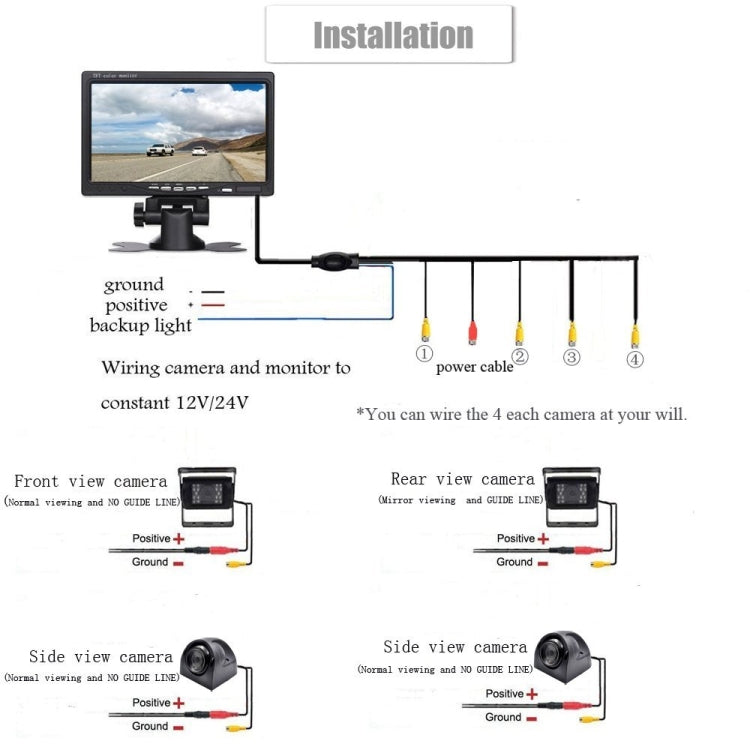

1 x Installation Instructions
