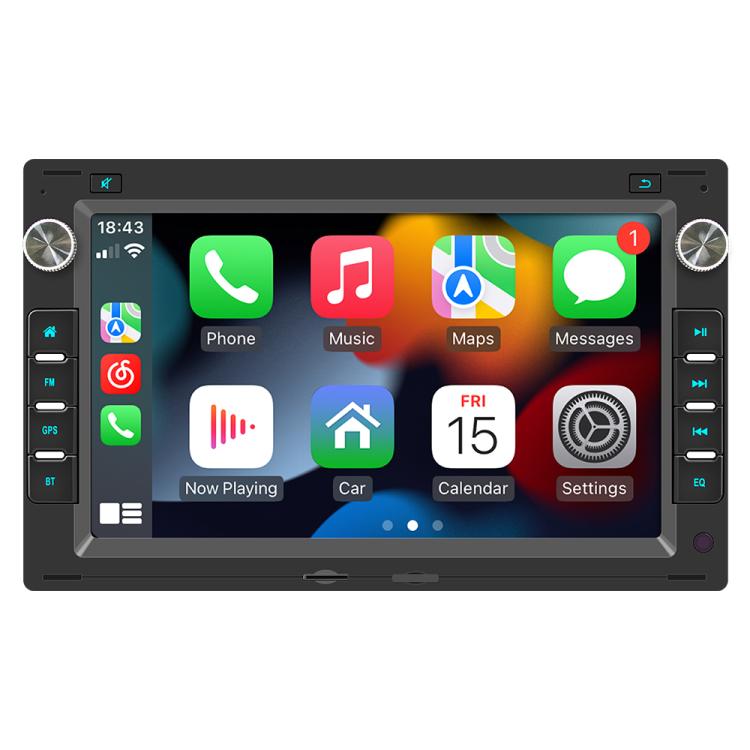

For Volkswagen Passat 7 Inch Bluetooth GPS Navigation Car Player, 1+32G, 2+32G, 2+64G

Basic functions
1. Radio (FM AM)
2. Read USB disk, TF card (audio/video/picture)
3. Rear audio input function

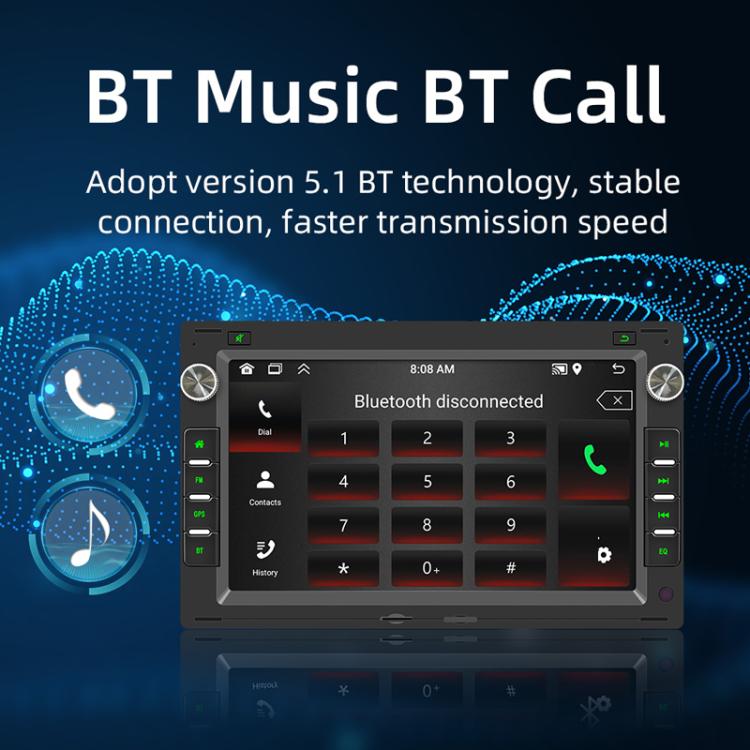

4. Bluetooth function
5. Subwoofer output

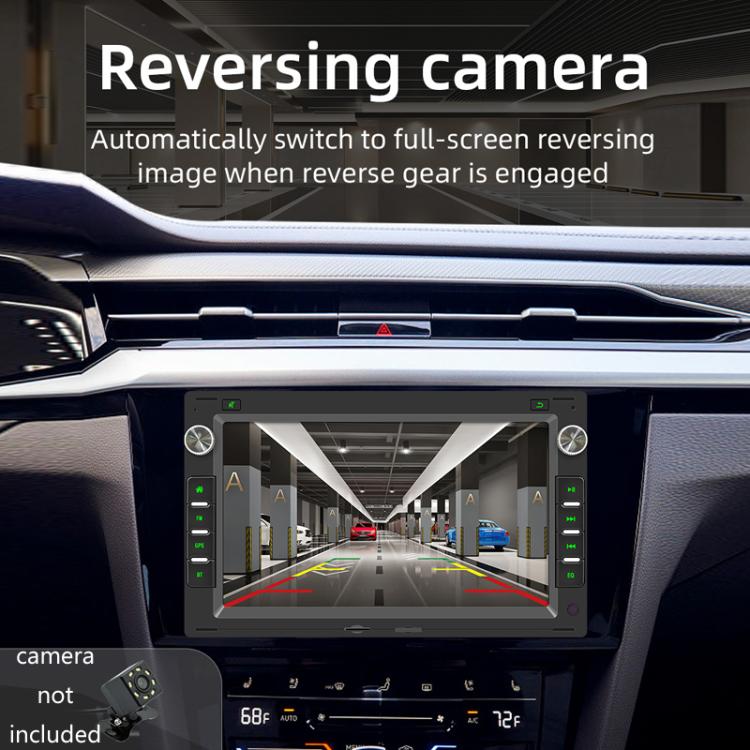

6. Reversing rear view function (camera not included)
7. Video input and output function

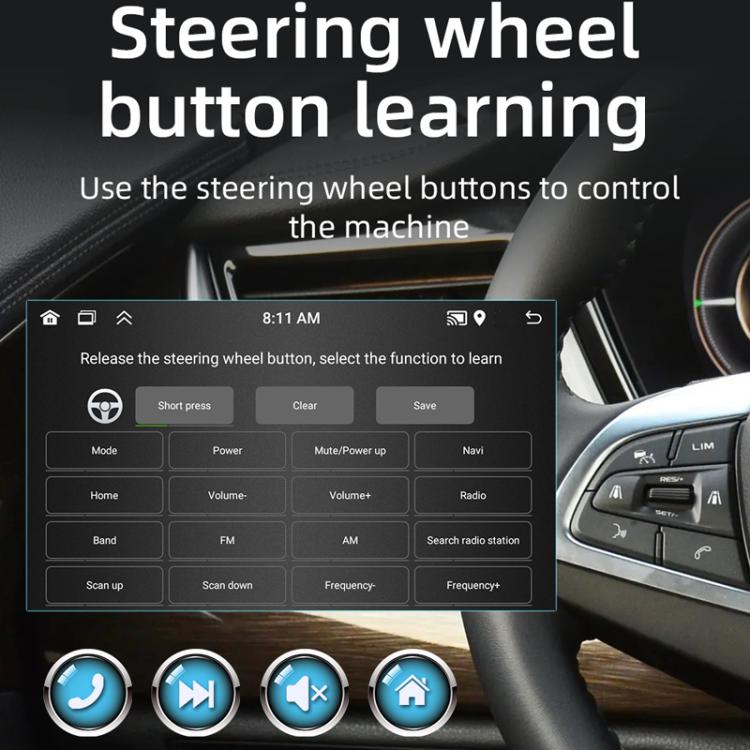

8. Original car steering wheel learning function
9. Android recorder can be installed
10. WIFI Internet access

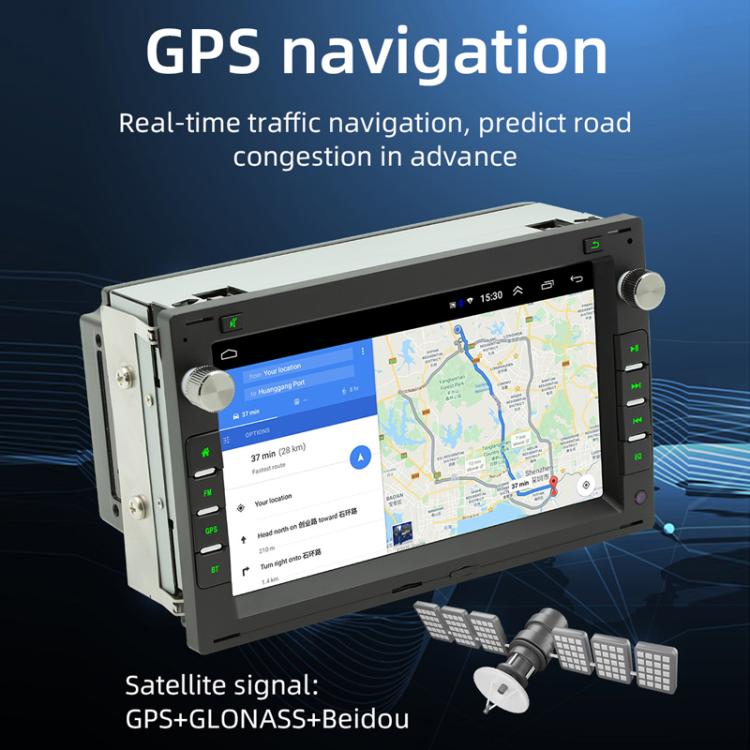

11. GPS navigation

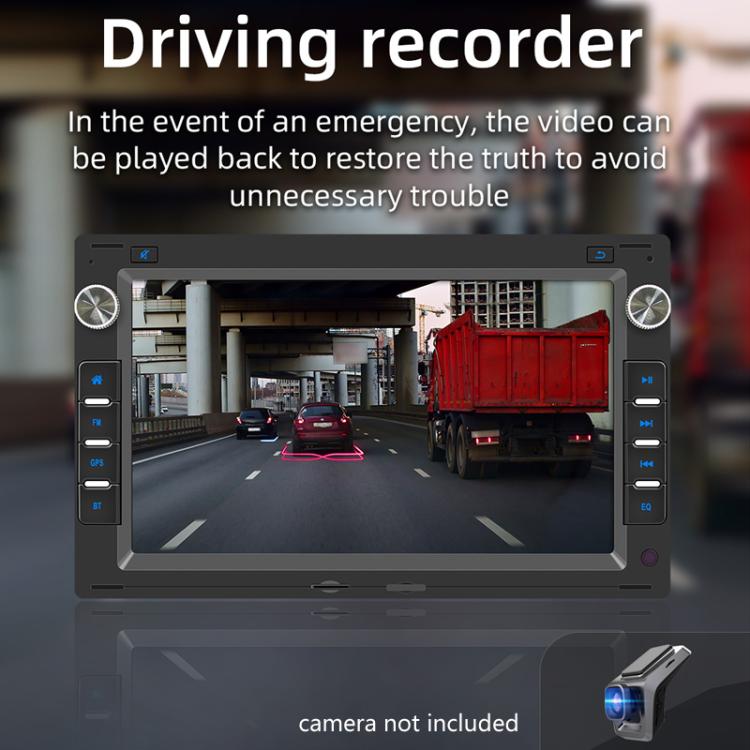

12. Recorder function
13. APP can be installed

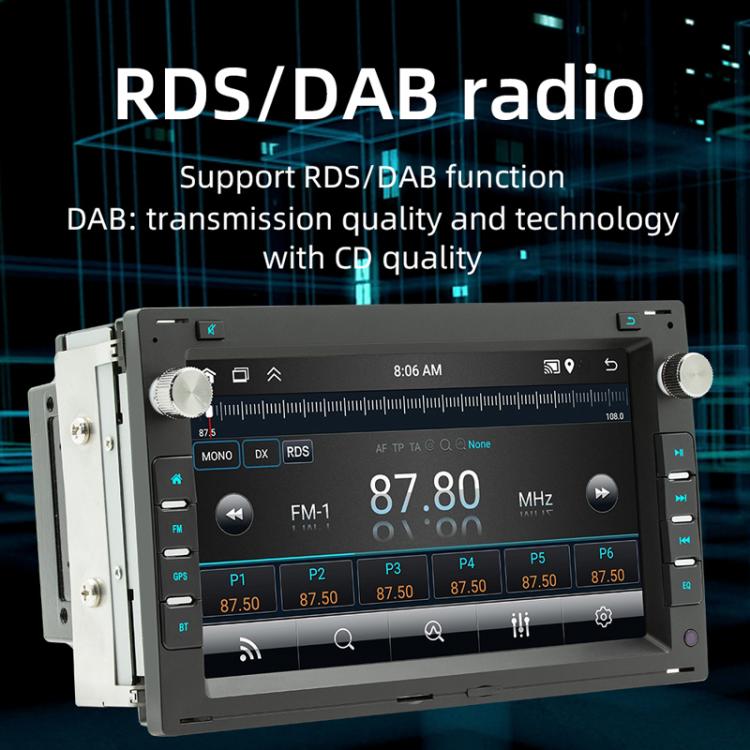

14. RDS function, real-time traffic radio can be received
15. External microphone function (microphone not included)

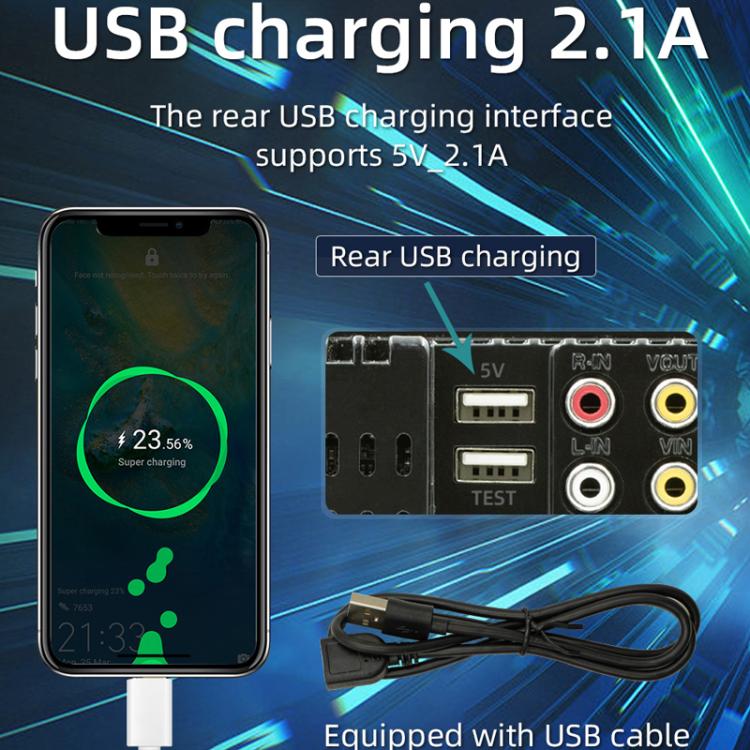

16. USB charging function (2.1A)

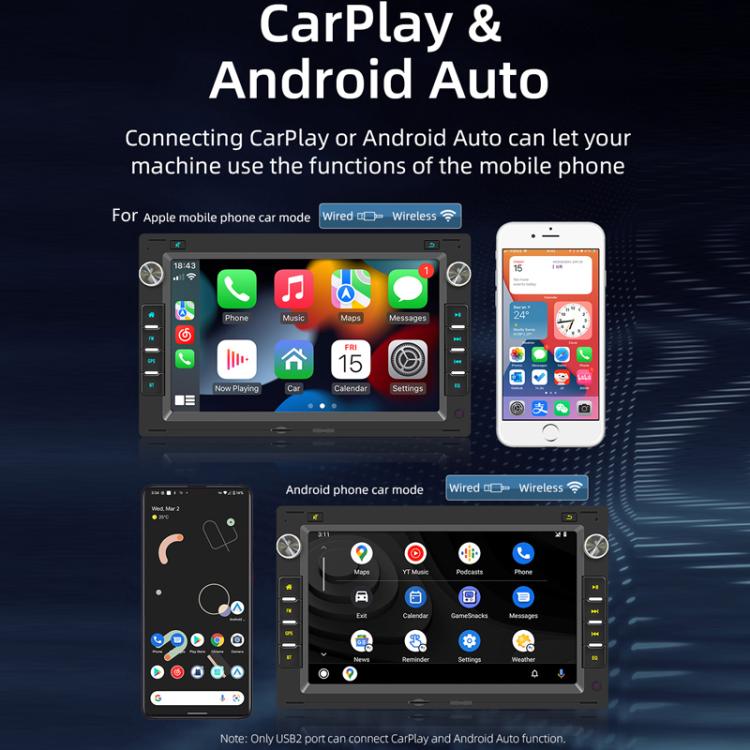

17. Wired and wireless for Apple CARPLAY and Android AUTO function
18. DAB function (install customer APP)

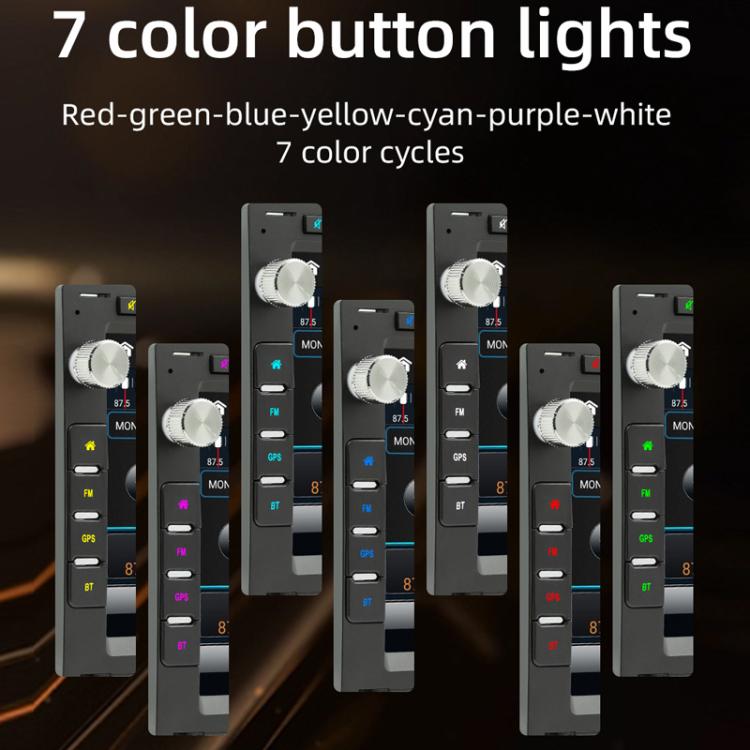

19. Colorful lights

Basic parameters
1. Applicable Volkswagen Passat
2. System: Android 12
3. Software solution: Jinganchi private board
4. Radio frequency: FM 87.5~108.0MHz 522~1620KHz (switchable Europe, Eastern Europe, North America, South America, Africa, Australia, Japan regional radio frequency)
5. Radio chip: 4745
6. Amplifier chip: YD7388
7. Output power: 60Wx4
8. Working voltage: 12~14.4V
9. Bluetooth version: version 5.1 (default name: CAR BT)
10. WIFI frequency: 2.4GHz
11. GPS signal: Beidou/GPS/GLONASS

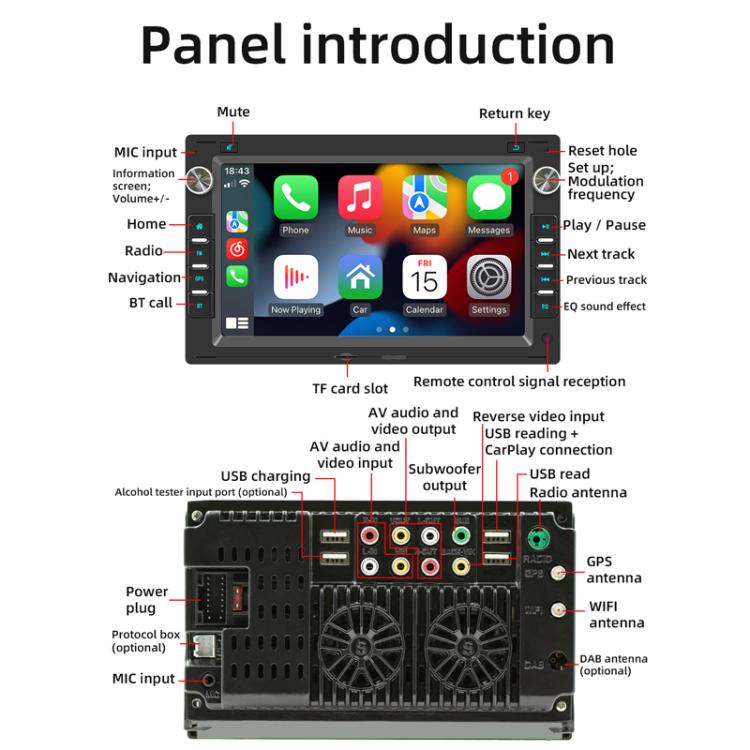

12. Support reversing image, video warning, steering wheel control (button learning), video output, offline map, driving recorder (USB signal input), GPS navigation, rear USB (USB2.0 X 2) 5V USB port (rear USB charging port, 2.1A), TEST USB port (alcohol tester input port), external microphone port, TF card, reset button
13. Chinese/Traditional Chinese/English/Russian/Greek/Polish/Turkish/Arabic/Persian/Romanian/French/Hungarian/Italian/Thai/German/Ukrainian/Spanish/Portuguese/Czech/Vietnamese/Japanese/Malaysian/Dutch/Indonesian/Korean
14. Factory setting password: 1234

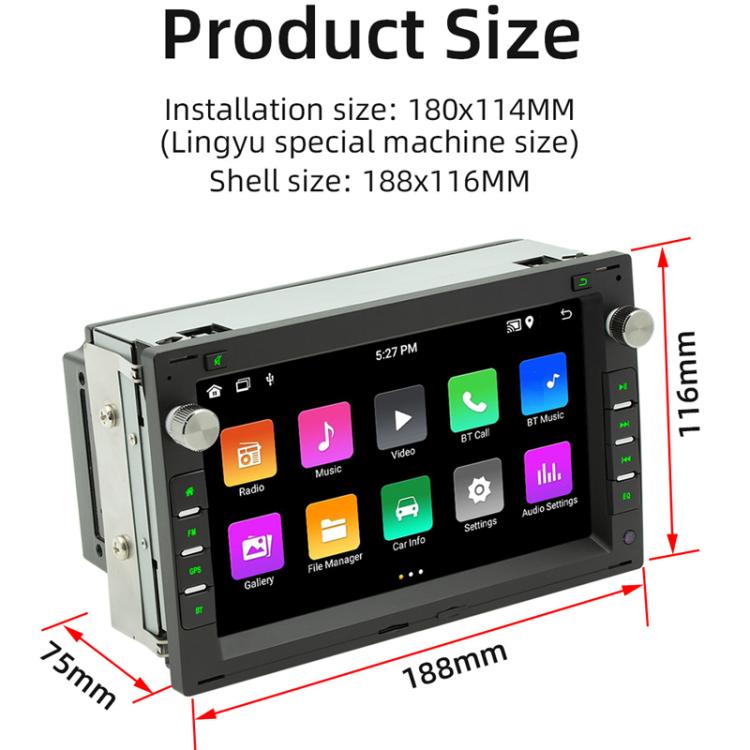

15. Installation size: 180x114mm
16. Shell size: 188x116mm
17. Host depth: 75mm

Performance parameters
1. CPU: A7 1.1GHz x 4
2. Running memory: 1G (DDR3)
3. Storage memory: 16G
4. Display resolution: 1024x600
5. Screen size: 7 inches

RCA port parameters
1. Audio output: 2 channels (left channel + right channel)
2. Subwoofer output: 1 channel
3. Video output: 1 channel
4. Audio input: 2 channels (left channel + right channel)
5. Video input: 1 channel
6. Reversing video input: 1 channel

Format parameters
1. Audio format: MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM
2. Video format: MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB
3. Image format: JPG/BMP/PNG/JPEG/GIF

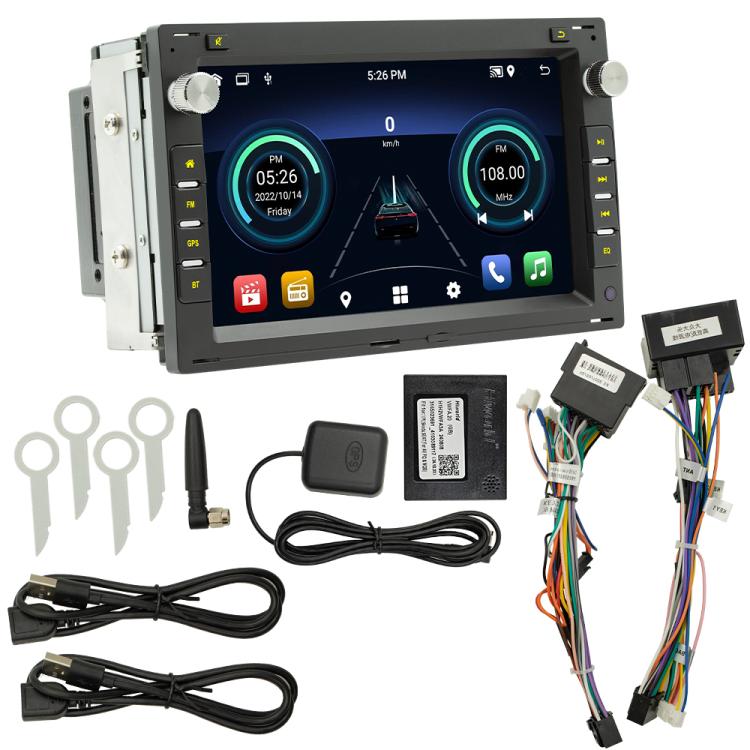

Packing list:
- Host
- GPS antenna
- Dedicated power cord x2
- USB cable x2
- Instruction manual
- Chili antenna
- Disassembly key x4
