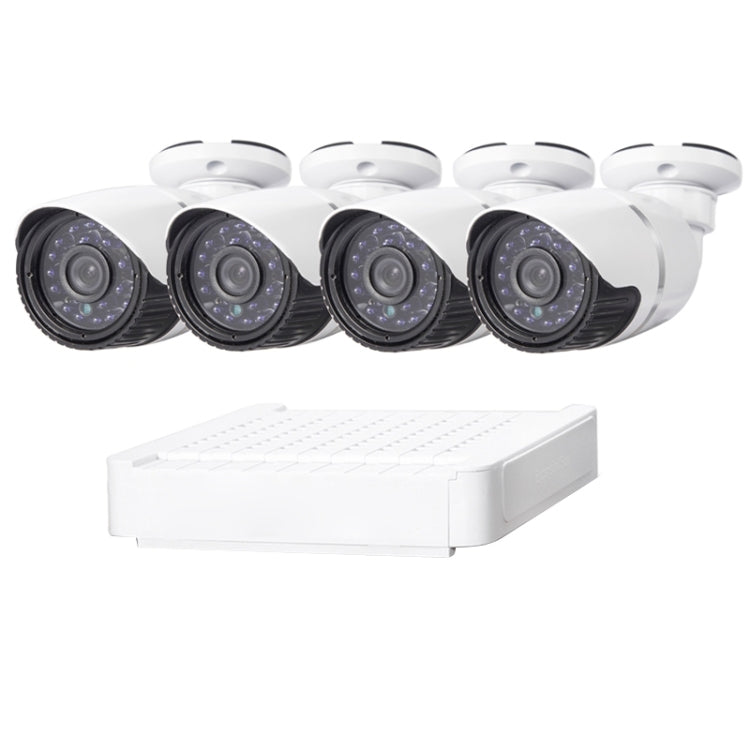

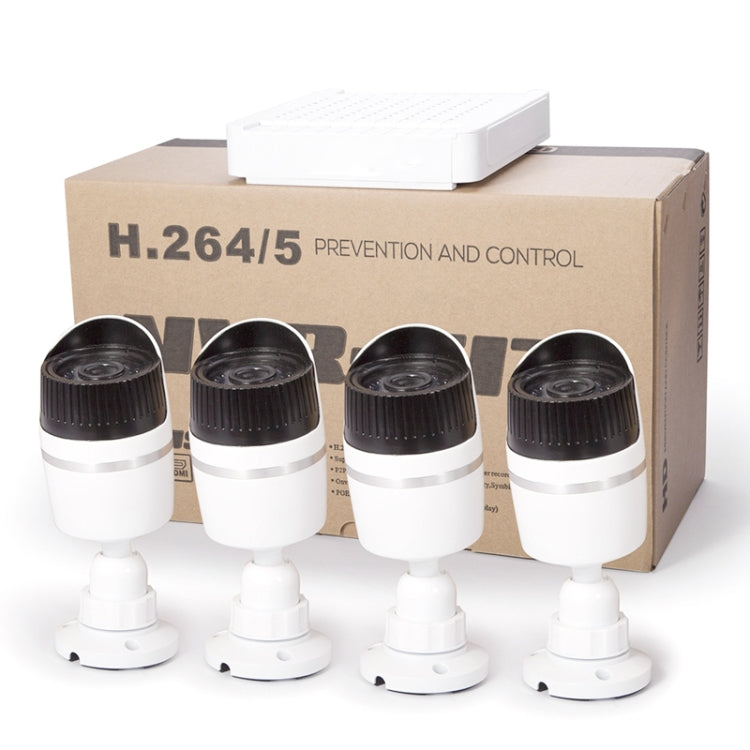

N4B-Mini/L 4 Ch 720P 1.0 Mega Pixel IP Camera NVR Kit, Support Night Vision / Motion Detection, IR Distance: 20m, N4B-Mini/L

Features
1. Support 4CH 960P/1080P 1 HDD NVR
2. 4x 1MP IP Camera(24* 5mm IR LED, IR distance 20m)
3. High performance H.264 compression technology, processing and flexible
4. Plug and play(i8s Super agreement): One-click setting, IP address was assigned automatically
5. P2P cloud service, including cloud connecting, cloud monitoring,cloud transmitting to access IPC and NVR at any time and any place, Mobile viewing,support all smartphone systems
6. Support Onvif protocol, support high profile S, high profile G, compatible with different IP camera that based on Onvif, RTSP standard
7. Offer CMS for free

NVR
1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
2. Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
3. Support megapixel HD network video preview, storage and playback;
4. Support search, playback and backup by event;

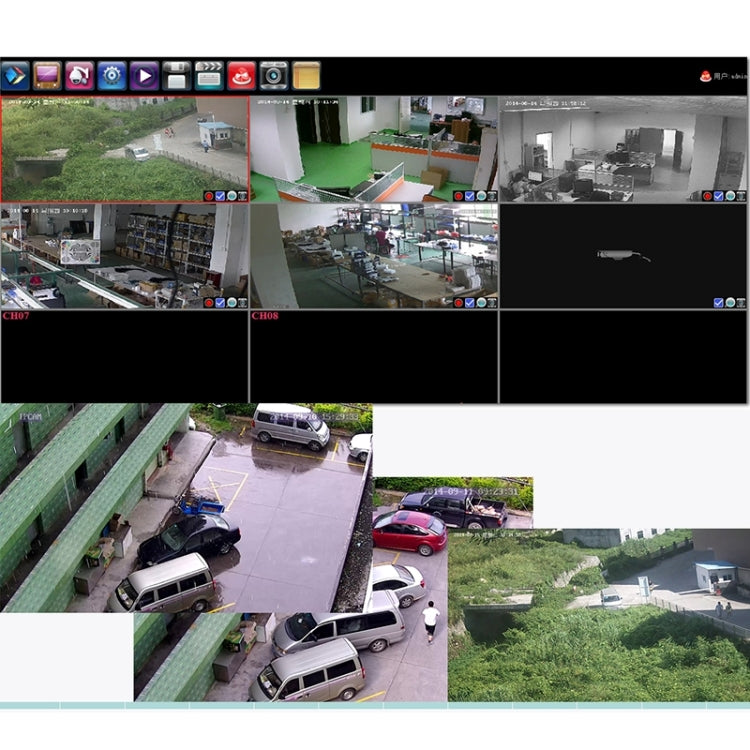

5. Support all channel image display on one screen at same time, support 4 channels' image display by mainstream, and 4 channels playback;
6. Support monitor PTZ on preview mode
7. Offer CMS for free
8. Dual stream: Each channel can set main stream and sub stream
9. Video standard: 1080P(1920*1080)30fps / 960P / (1280*960) / 720P (1280*720) 30fps
10. Monitoring image quality: 1080P(1920*1080) / 960P/(1280*960)/720P(1280*720)
11. Image motion detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC support)
12. Recording playback quality: 4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P
13. Region cover: Every channel can set 4 cover regions (IPC support)
14. Recording mode: Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC support)

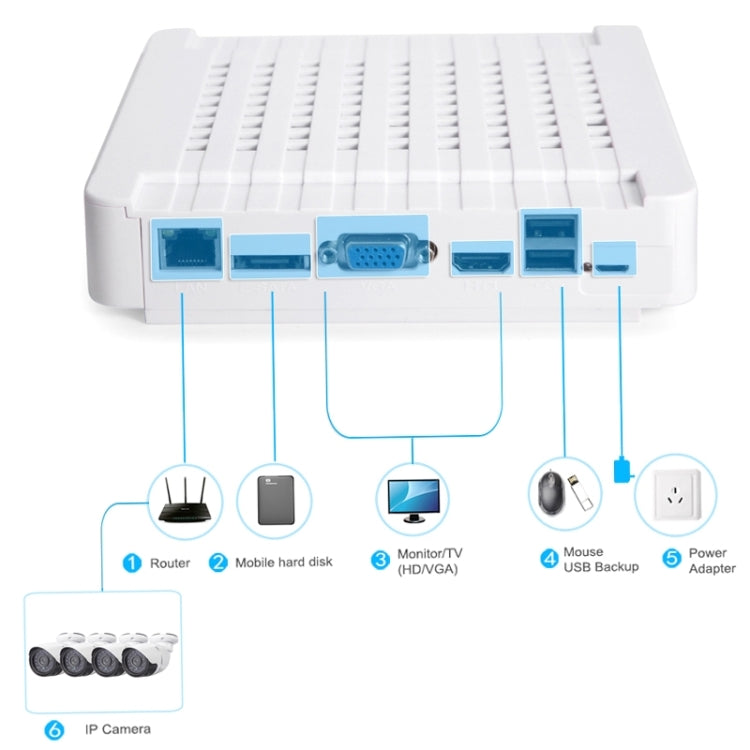

15. Backup way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
16. Operation way: Mouse, Keyboard
17. Local login: User name and password
18. Recording storage: Local HDD, network

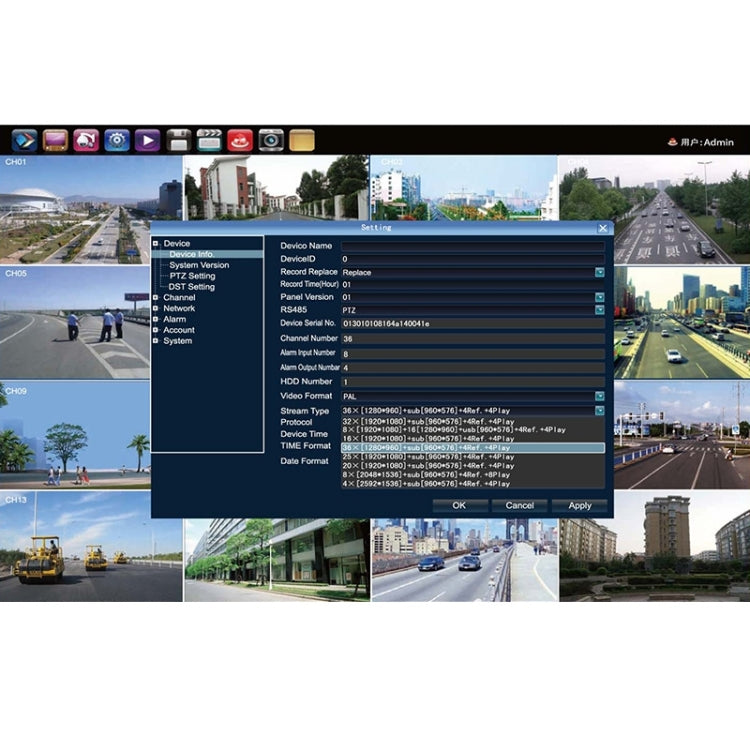

19. Video Input
4x(1920*720) + sub(960*576) + 4Ref.+ 4Play 4ch 1.0MP IP Camera
4x(1280*960) + sub(960*576) + 1Ref.+ 4Play 4ch 1.3MP IP Camera
4x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 4ch 2.0MP IP Camera
1x(1920*1080) + sub(960*576) + 4Ref.+ 1Play 1ch 2.0MP IP Camera
4x(720*576)+sub(352*288) + 4Ref. + 4Play 4ch D1 IP Camera
20. Audio Input: 4ch network audio input

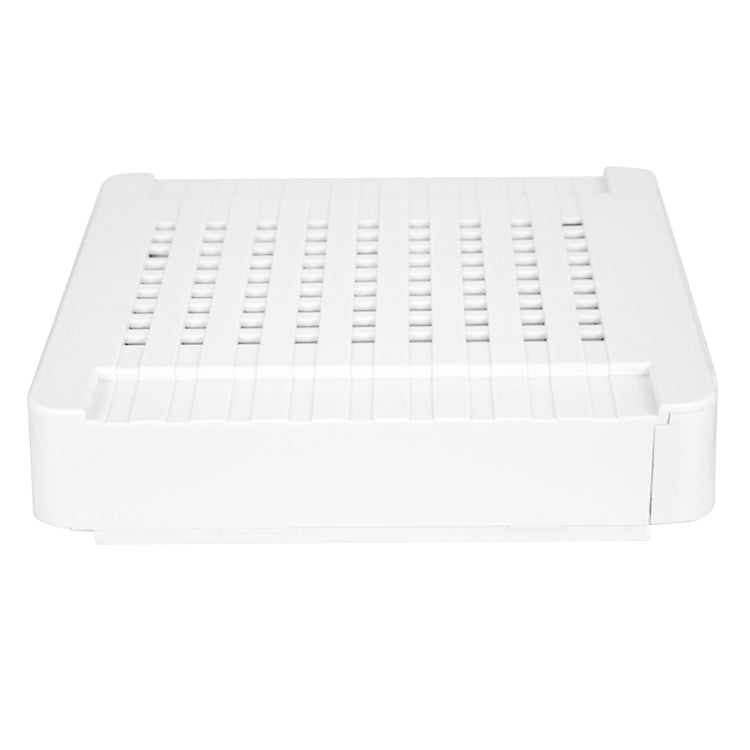

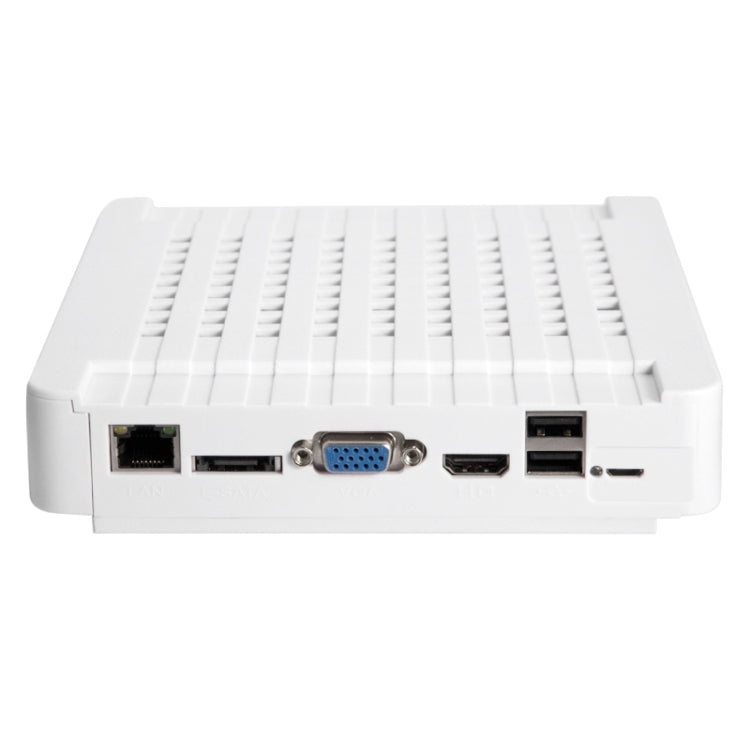

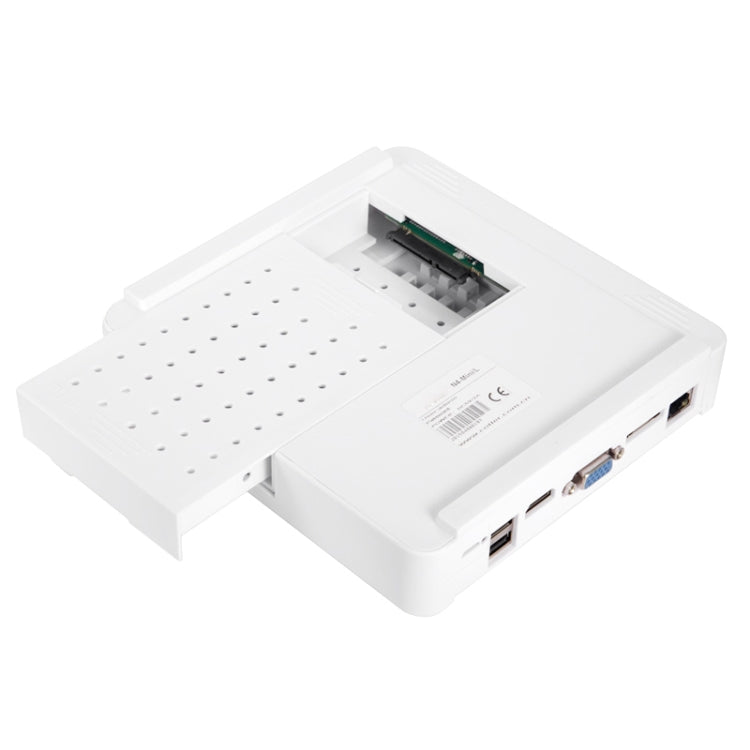

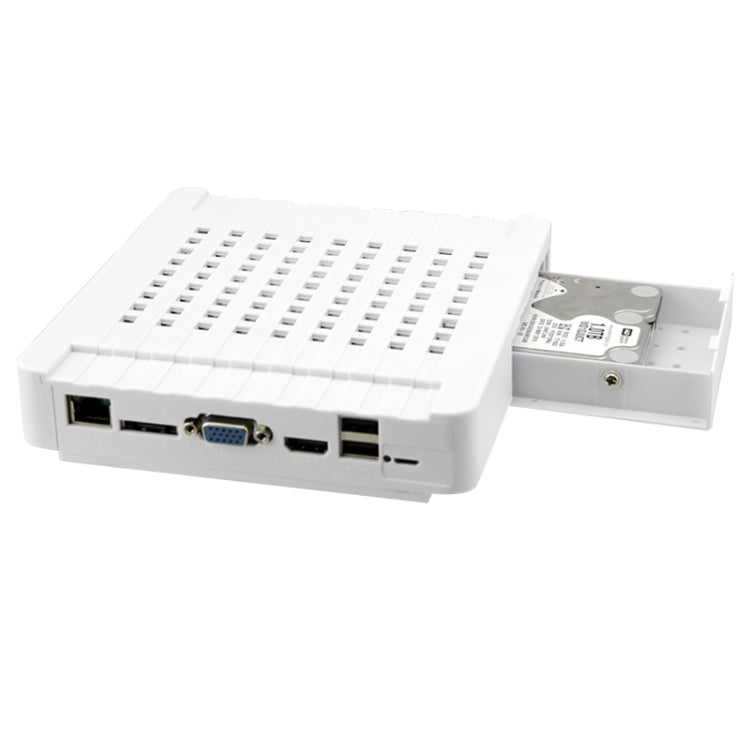

21. Desktop Installation, Mini II 1HDD (2.5 inch) NVR, Support 4T HDD

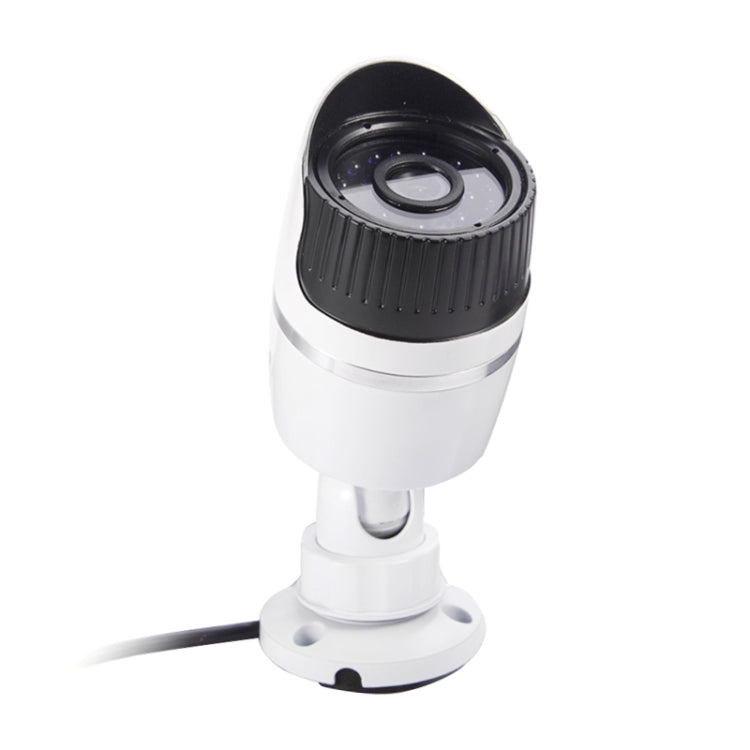

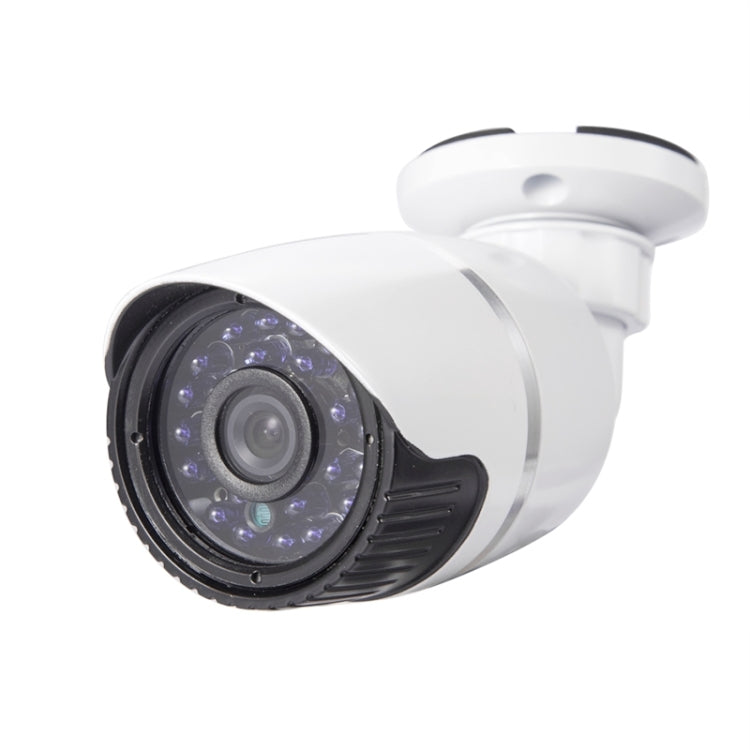

IP Camera
1. High performance H.264 compression technology, processing and flexible, high compression ratio.
2. Support IR CUT dual OLP Switching, monitored day and night to achieve.
3. Dual stream network transmission, for a variety of network environments
4. Support P2P mobile phone monitoring (compatible iPhone / Android)
5. Support Onvif.
6. Motion detection, linkage video.
7. Support dual-stream, AVI format; support adjustable stream 0.1M~6Mpbs.
8. 1*RJ45 Ethernet interface, 10/100M self-adaptation and can resist 6kv static electricity.
9. Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download.
10. Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (iPhone / Android), through service "through clouds" P2P and provide complete development kit SDK.
