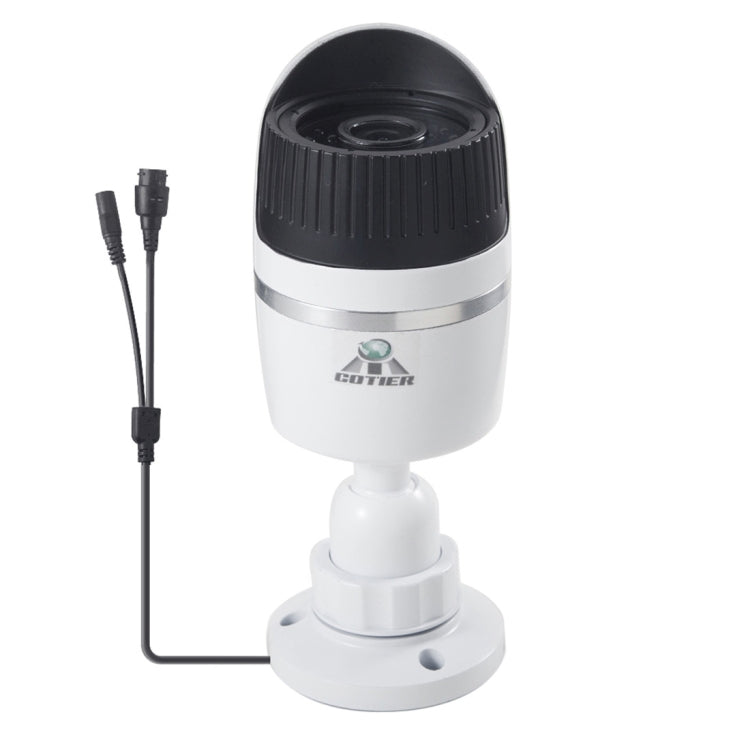

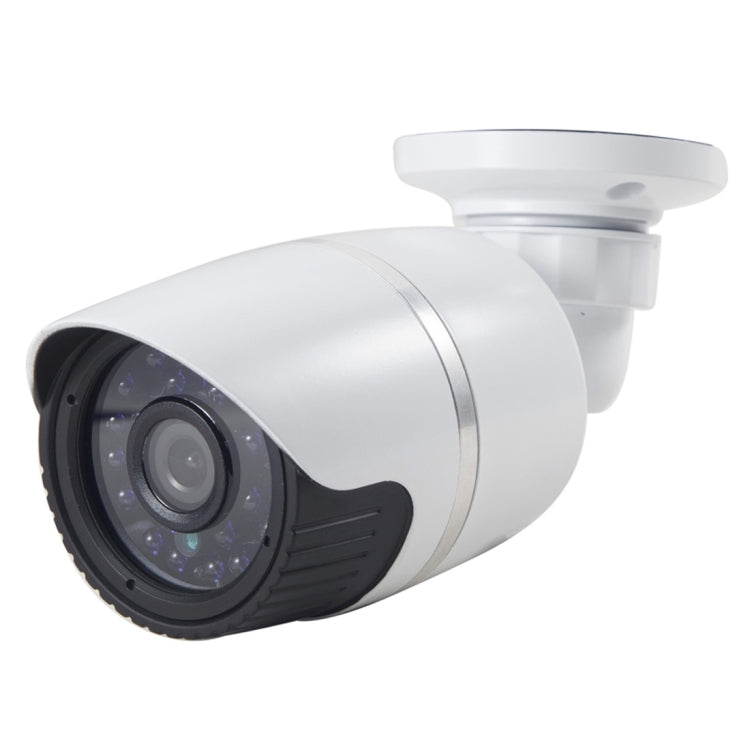

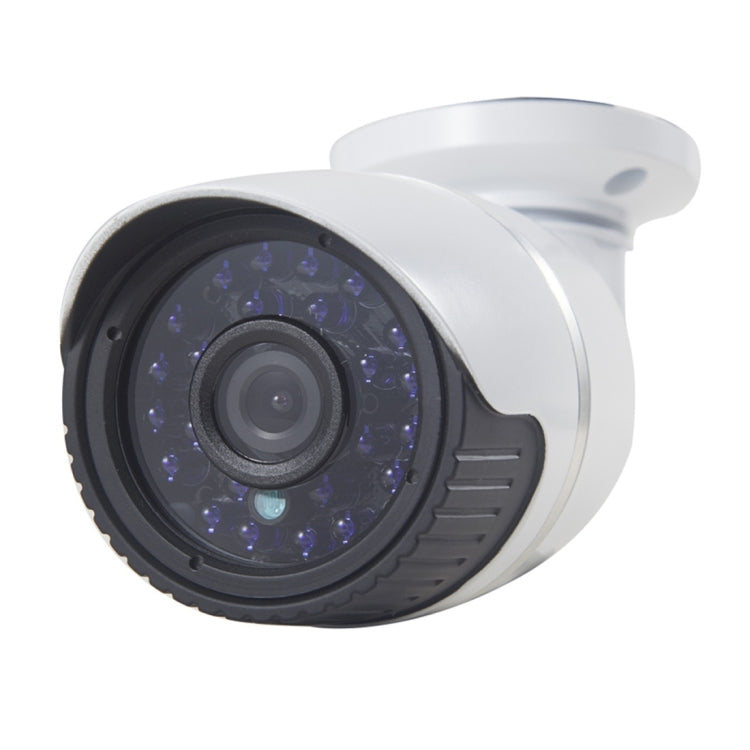

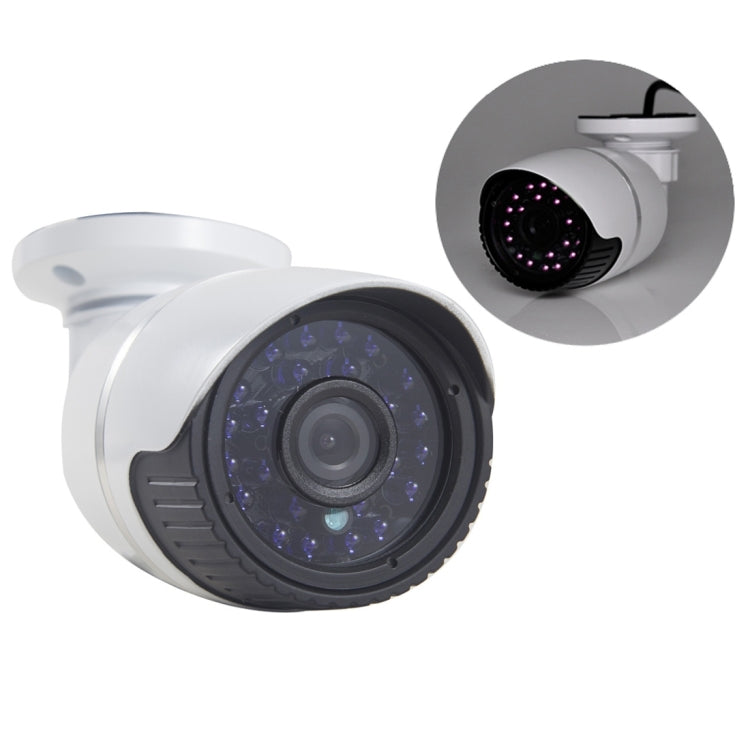

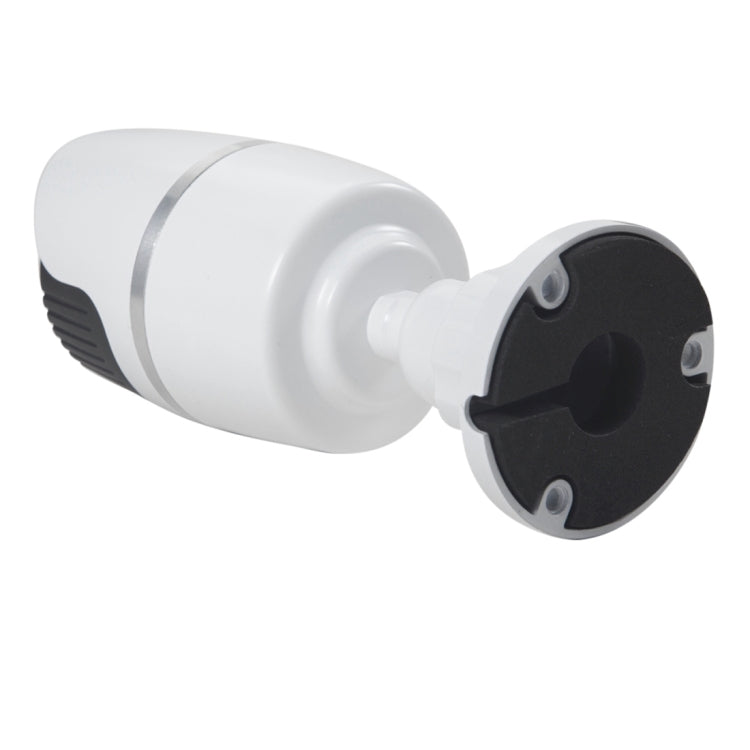

H.264 Wired Infrared Waterproof / Vandalproof IP Camera, 1 / 3 inch 4mm 1.3 Mega Pixels Fixed Lens, Motion Detection / Privacy Mask and 30m IR Night Vision, Support HD 720P (1280 x 720), IPc-631 /T13

1) 1 / 3 inch 1.3 Megapixel CMOS Image sensor

2) Dual core TI Davinci 32 bits DSP.

3) Integrated 4 mm Megapixel lens.

4) Day and night application makes 30M IR view

5) H.264 video compression, support dual stream and AVI format.

6) 1.3 Megapixel 25FPS

7) Wide Dynamic, low illumination.

8) Offer open SDK

9) Onvif compliant

10) Remarks: 5 Mega Pixels=2592*1920; 3 Mega Pixels =2048*1536; 2 Mega Pixels =1920*1080 or 1600*1200; 1.3 Mega Pixels =1280*960; 1 Mega Pixels =1280*720

Specifications:

1) System Structure: Embedded LINUX RTOS, dual core 32 bits DSP (TI Davinci DM365); Pure hardware compression, watchdog, 32M Flash, 128M DDR2.

2) Image Sensor: 1/3 inch1.3 Megapixel CMOS Image sensors.

3) Lens: 4mm Mega pixels lens

4) Photo resistance Linkage: Support linkage between photo resistance input sign, image, IR-Cut and IR lamp. 1 photo resistance interface

5) Day & Night: IR cut filter with auto switch, IR sensor. 24pcs Φ5 LED IR

6) Video compression: H.264 compression, dual stream (0.1M-6Mpbs adjustable)

7) Frame Rate: 1.3 Megapixel 25FPS

8) Image Output: Main Stream: 1280*960,1024 * 768, 1280 * 720

9) Sub Stream: 960 x 540, 640 x 360, 480 x 272, 352 x 288, 320 x 240, 352 x 192, 320 x 192, 288 x 192, 256 x 192

10) Network Interface: 1RJ45 Ethernet interface, 10/100M adaptation

11) Protocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

12) Network Function: WEB Configure and OSD supported, real time recording, transmission and playback, download.

13) Free UC2 client software supported, VM6000 platform supported, SDK for customer software development

General Specifications

1) Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)

2) Operating Humidity: 0% -85% RH

3) Power: DC12V 1.0A

4) Power Consumption: 3W (MAX)

5) Dimension: 220 mm x 125 mm X 100mm

6) Weight: 560g

7) Certification: CE, FCC

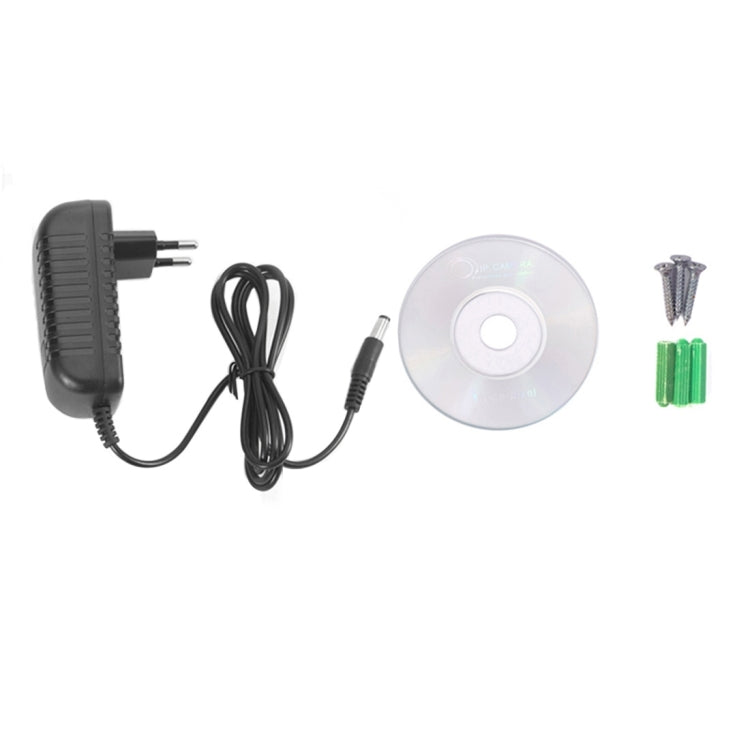

Package Contents

1) IP Camera

2) CD

3) Power Adapter

4) Screws
