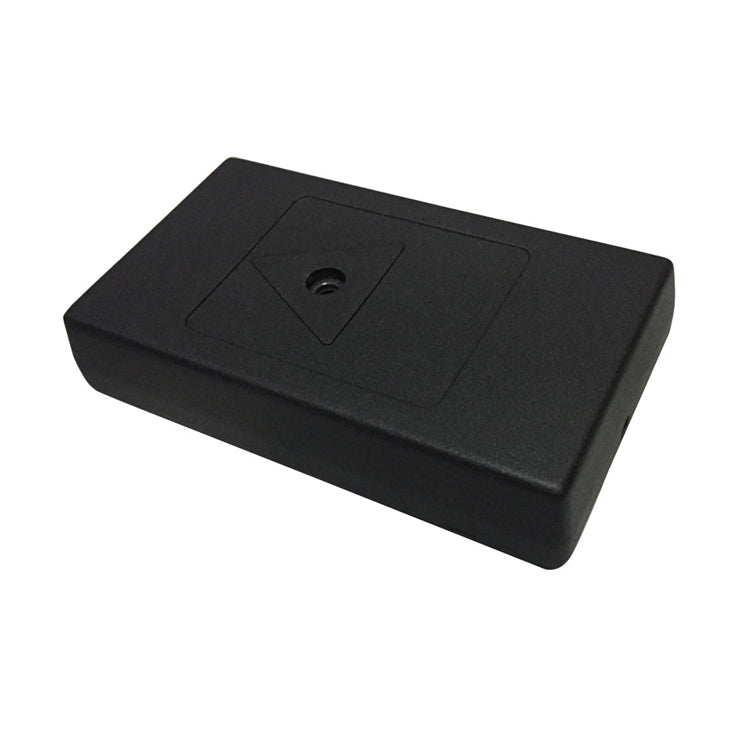

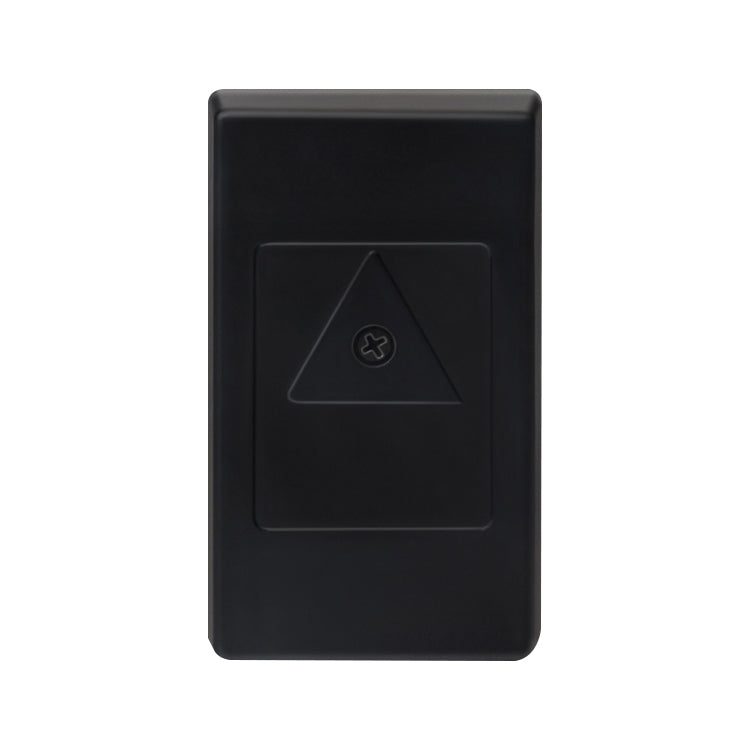

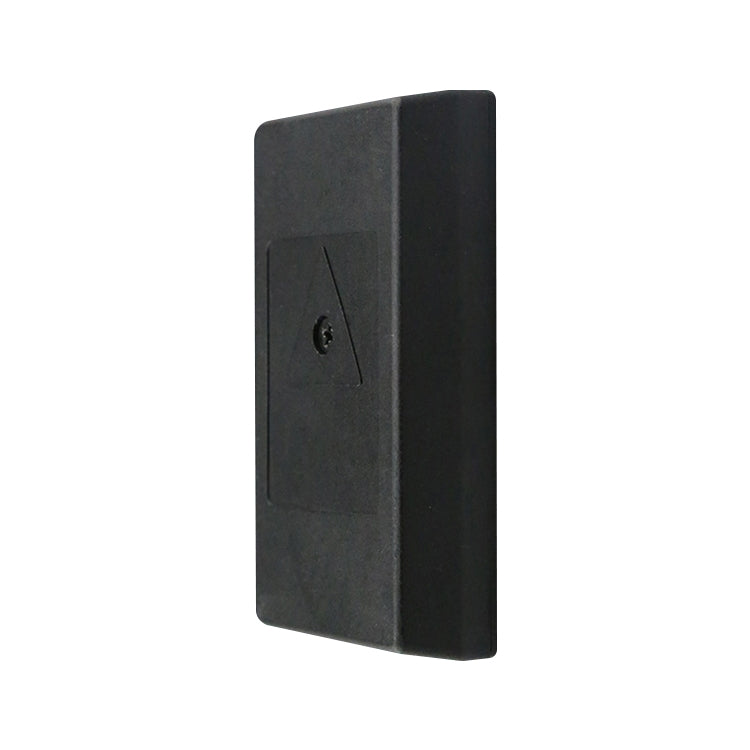

Burglary Alarm Master Panel Alike Paradox Alarm System (PA-950), PA-950

Application:

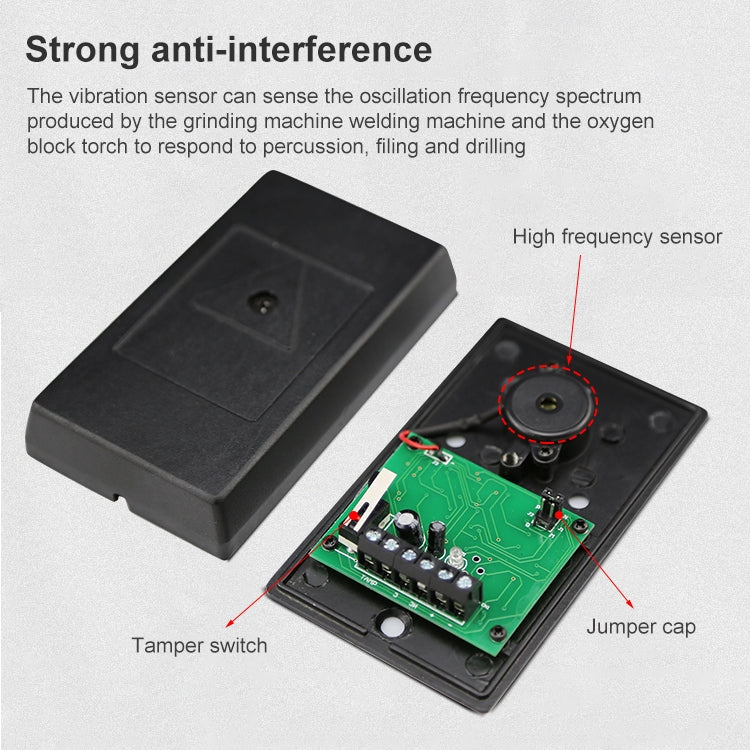

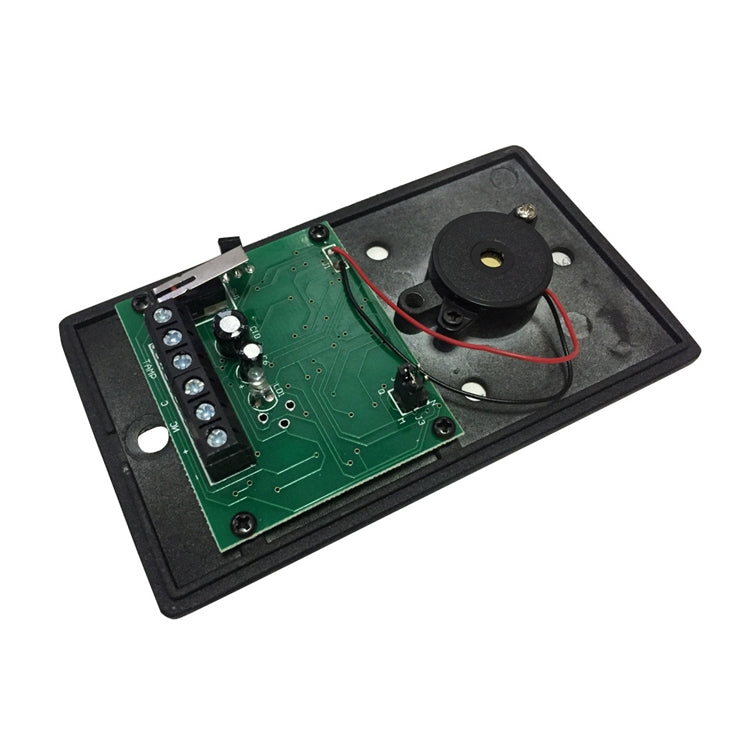

1. Specially designed for metal and concrete wall tamper with, for safe, metal door, the chamber, the cash box and bank cement walls and other protection. Built-in high-frequency sensor, can detect drilling, cutting, cutting, welding and other damage.
2. High sensitivity sensors Piezoelectric sensors can damage the surface of cut
3. Surface mount design

Specifitions:
1. Model: PA-950
2. Piezoelectric sensors with low noise, high sensitivity
3. Sensitivity 30%, 40%, 50%, 70%, 100 percent five adjustable
4. Operating temperature: -20 degree C to 50 degree C
5. Supply Voltage: DC 10-16V
6. Standby current: 12mA
7. Alarm current: 16mA
8. Protection diameter of 2.5 meters
9. Surface mounting location of protected areas
10. Alarm output NC, DC 28V 0.15A
11. Normally closed tamper switch, open the cover is removed, 0.2A, 24Vdc
12. Humidity : 95% at 25 degree C
13. Weight: 226g
14. Size: 109 x 64 x 23mm
