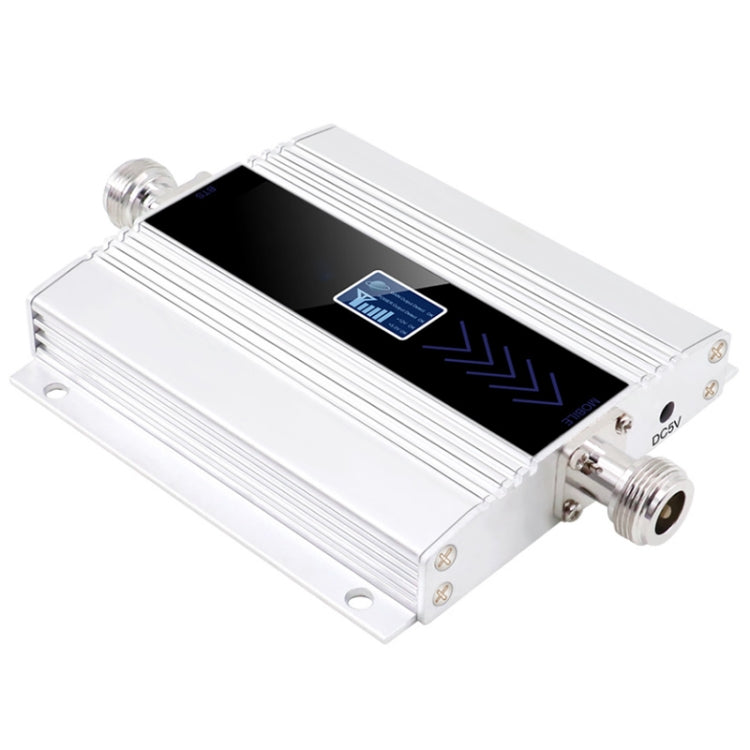

3G Signal Amplifier with Signal Strengthen Antenna, Cable Length: 10m, Signal Amplifier

**Specification

1) Frequency range:

- Up link 3G 1920-1980(MHz)

- Downlink 3G 2110-2170(MHz)

2) Gain(dB): 3G 53 / 3G 58

3) Gain adjustable range: MGC≥30dB

4) Output power(dBm): ≥20

5) Pass band ripple 3G: 15dB

6) Guard band rejection 3G: (BW-58dB)≤104MHz (BW-70dB)≤107 MHz

7) I/O impedance:50C/N Connector

8) I/O return loss: ≤-10dB

9) Noise igure: ≤-8dB

10) Intermodulation att enuation (Po=13dBm): ≥40dBc

11) Transmission delay: ≤0.5us

12) Ambient temperature: -10℃～50℃

13) Power supply: AC 110～220V±10% 45～55Hz

**Characteristic

Fully integrated WCDMA 3G antenna system

1) Powerful amplifier enables up to + 85 dB of signal gain including cable loss

2) Intelligent signal processing and real time adaptive operation

3) Automatically adjusts power levels as needed to ensure a consistent coverage footprint

4) Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed

5) Auto-Trac LED diagnostics displays aid install and operation

6) Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices

7) Approved by CE

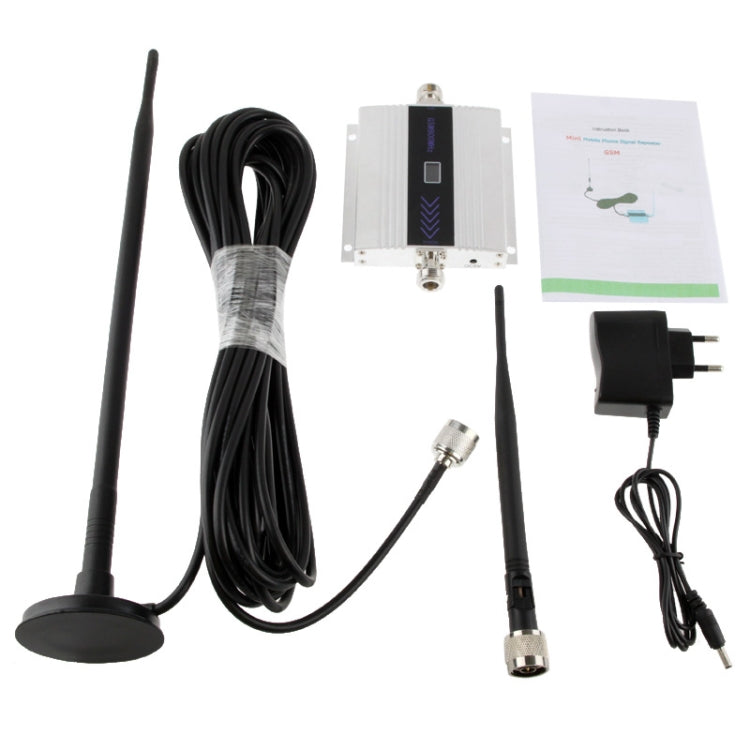

**The package contains:

1) 55Db 3G cellular phone signal amplifier

2) 9dB outdoor antenna

3) 3dB indoor antenna

4) Outdoor coaxial cable 10m

5) Mounting accessories

6) AC power supply
